ANT4965D30P6-C5X
The AT4965D30P6-MIMO is a 5 GHz 30dBi antenna that is ideal for Point-to-Point ( PtP ) links of 30+ km. Its all-aluminum design

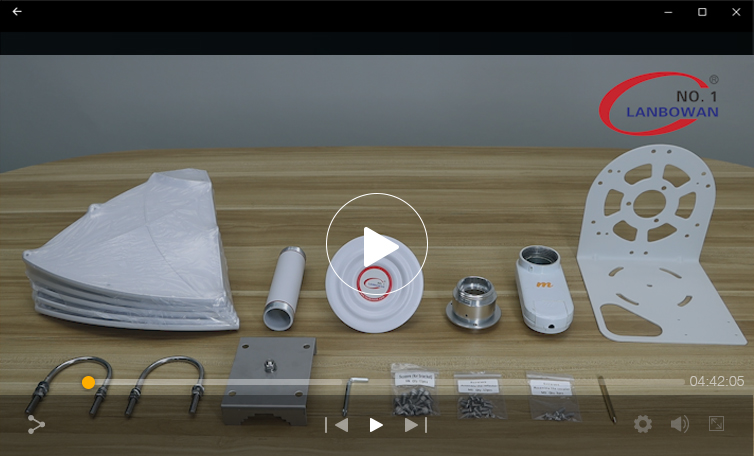

enhances reliability. It can be shipped via DHL, FedEx, or UPS due to disassembled to compact size for transport.
Features |
• 4.9-6.5GHz Frequency • 30dBi High Gain • MIMO • Dual Slant • 2 feet Dish |
Applications |
• 4.9/5.1/5.3/5.4/5.8/6.4 GHz ISM and UNII Band • MIMO and 802.11n Applications • WiMAX Applications • Long Distance Backhaul and Point to Point Data Links |
Technical Specifications | |||
Electrical | |||
Model | ANT4965D30P6-C5X | ||
Frequency Range | 4.9-5.1GHz | 5.1-5.9GHz | 5.9-6.5GHz |
Gain | 29dBi | 30dBi | 31dBi |
VSWR | <2.5 | <2.0 | <2.0 |
Polarization | Dual Slant | ||
Isolation | >30dB | ||
Front to Back Ratio | >35dB | ||
Horizontal Beam width | 5° | ||
Vertical Beam width | 5° | ||
Maximum Power Per Port | 50W | ||
Impedance | 50Ω | ||
Lighting protection | DC Ground | ||
Mechanical | |||
Connector | C5X | ||
Antenna Size | φ0.6m | ||
Antenna Weight | 6.5kg | ||
Antenna color | white | ||
Dish material | aluminum | ||
Diameter of the Pole | Φ30 to φ80 mm | ||
Operational Temperature | -40°C to +70°C (-32°F to +158°F) | ||
